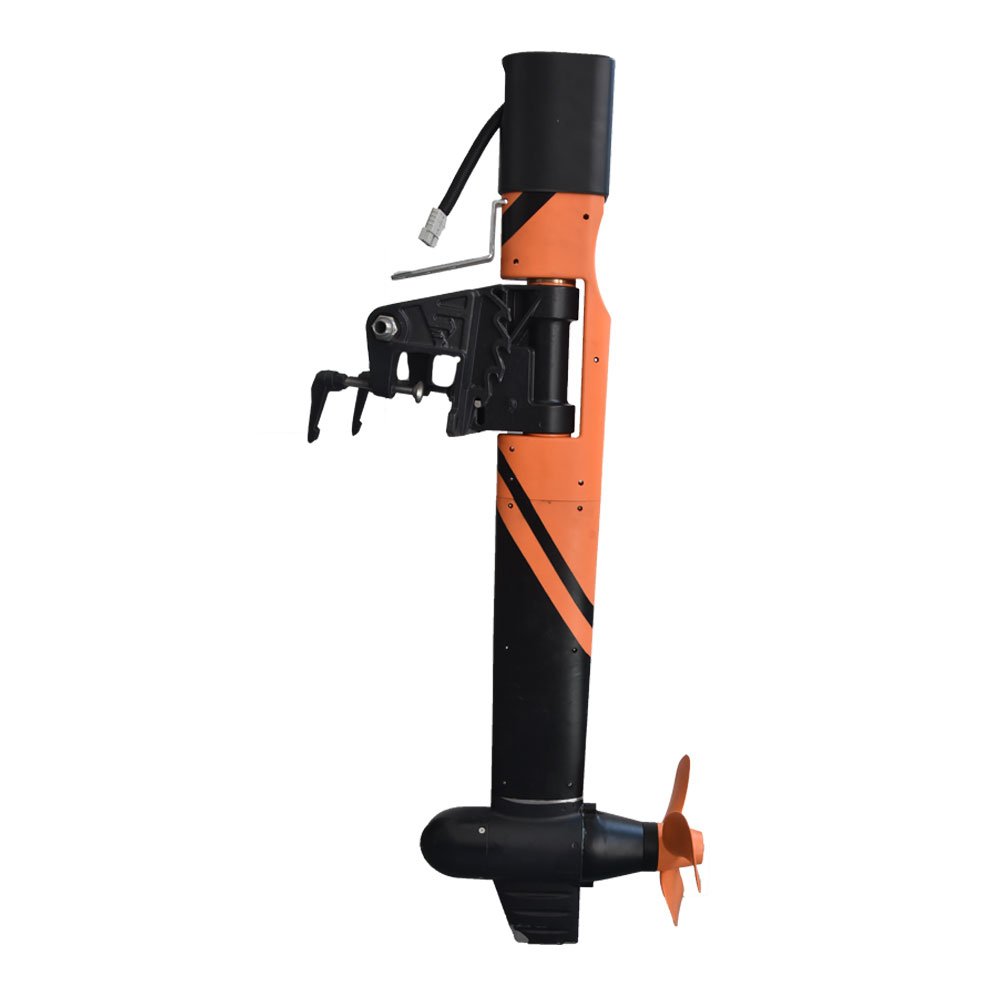

G6.0 electric outboard (with control box)

Power 6kw
Voltage 150VDC
Energy type 100% electric
Rated voltage/current 150V/40A
Input voltage range 133V~168VDC
Full load speed(forward) 1560rpm
Product description
Parameters
The thrust curve
Dimensions&interfaces

Max input power

6.0 kW forward; 6.0 kW reverse

Equivalent fuel outboard4

12hp

Control

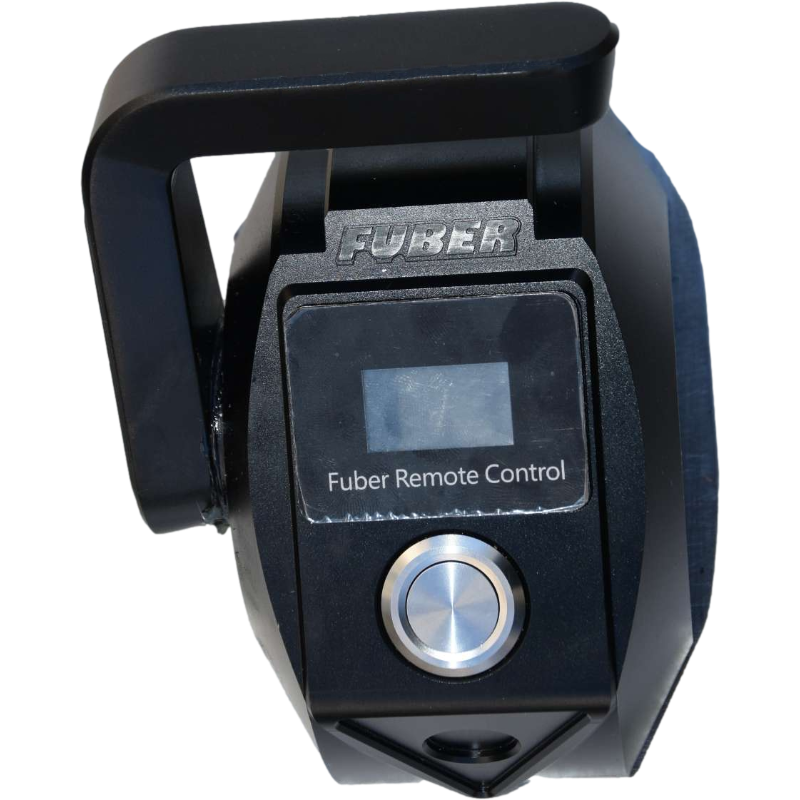

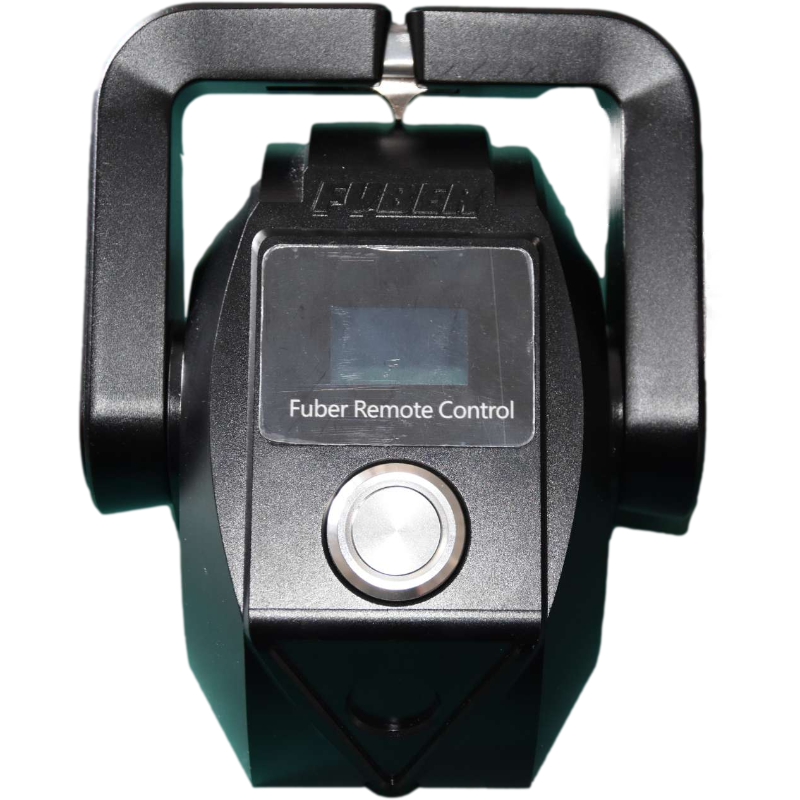

tiller/control box

Communication

cable

Length×Width×Height

727 x 330 x 1263(mm)

Axial length

long axial 625; short axial 525

Net weight

31kg(S)

Angle of lifting

0°、15°、30°、45°、60°

Propeller diameter

300mm

Working environment/storage temperature

-25℃ ~ 50℃ (-13℉ ~ 122℉)
